During direct melt spinning PET yarn production, polymer is processed through liquid-phase viscosity enhancement and distributed across parallel spinning lines to achieve high-volume, multi-grade industrial yarn output with reduced energy demand. Inline XL7-d16 viscometers maintain ideal melt viscosity at every stage, enabling efficient melt transport, consistent yarn strength, rapid grade changes, and reduced process interruptions.
PET Yarn Spinning Process Overview
A leading global producer of polyester industrial yarn, with an annual output of 200,000 tons, invested in new direct melt-spinning production lines to improve energy efficiency, reduce carbon emissions, and expand production flexibility.
Unlike conventional PET production methods that rely on pelletising and solid-state polymerisation, the direct-spinning method builds viscosity in the liquid phase and feeds the spinning units directly, eliminating multiple thermal cycles and reducing energy demand.
The system uses a polymerisation kettle and multiple parallel liquid-phase viscosity enhancement kettles, each supplying several spinning units, enabling the plant to produce different yarn grades simultaneously while maintaining high-volume throughput.
This architecture solves the long-standing challenge of handling high-viscosity PET melt at scale, and delivers both intensive production efficiency and the flexibility required for modern industrial yarn markets.
Process Challenges
Maintaining optimal melt viscosity throughout the process is critical. Without real-time control, operators risk energy inefficiency, inconsistent product quality, and difficulties in scaling production across multiple spinning units. The highly viscous nature of PET melt also creates challenges for stable transport and handling in large-scale continuous processes.
Early-stage low viscosity ensures optimal flow and pumpability through the melt-pipes, while subsequent viscosity adjustments are needed to achieve the molecular chain length required for high-strength, high-quality yarn. At the annual output of 200,000 tons, efficient transport of the melt is critical for energy consumption, making viscosity control essential for both product quality and operational efficiency.
Inline Viscosity Solution

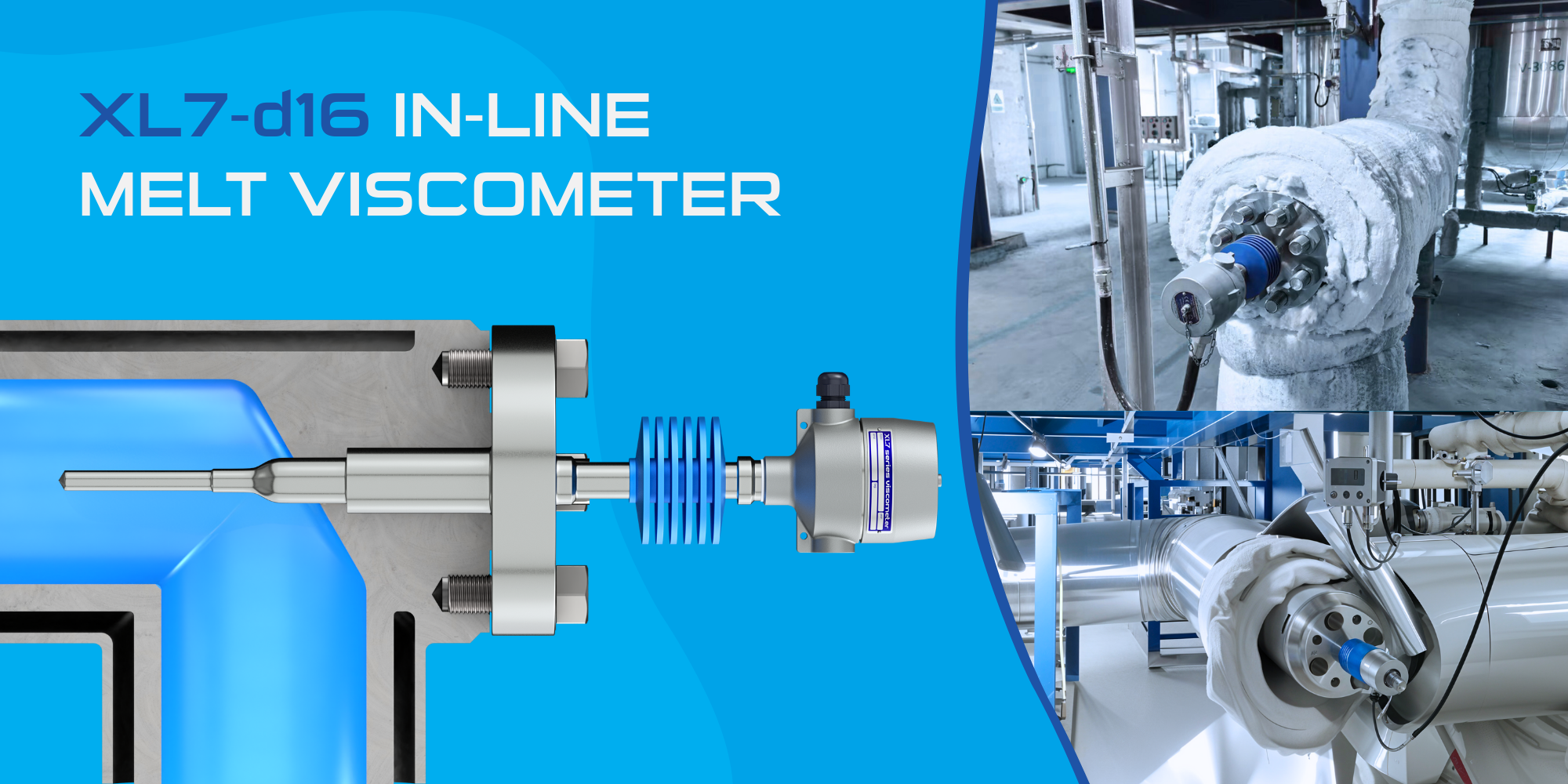

Hydramotion XL7-d16 viscometers are installed directly in melt pipelines to provide continuous, real-time viscosity measurement at each stage. By monitoring viscosity directly in the process, operators can ensure optimal pumpability in the early kettles and precise molecular chain control for high-quality fiber production.
Inline measurement enables immediate adjustments, allowing production to switch efficiently between different yarn grades while minimising energy use and waste. The result is stable, repeatable viscosity readings that directly correlate to fiber strength and quality, with an estimated annual energy saving of 30 million yuan (£3.4m).
Integration and Automation
Hydramotion’s XL7-d16 viscometer can be used with fluids at up to 400ºC with no need for special cooling. The sensor always operates at the fluid temperature, thus eliminating potential errors from localised cooling of the fluid.
The 16mm diameter all-welded spike design is robust and requires minimal maintenance, resists aggressive polymer environments, and can be easily extracted without damage, ensuring continuous operation in demanding industrial conditions. The seal half way along the shaft also limits the amount of unwanted polymer left in the pipe nozzle.
The dedicated readout unit can be located up to 1000 metres from the sensor and include 4-20mA viscosity and temperature outputs along with an RS232 or RS485 serial data link for recording or remote monitoring.
This integration enables operators to make data-driven adjustments, improving efficiency, reducing downtime, and supporting ambitious environmental targets.
The combination of direct melt-spinning and real-time inline viscosity control offers a triple benefit: flexible production of multiple PET grades, high-quality yarn output, and significant energy and emissions reductions.
Hydramotion viscometers provide the precise, robust measurement needed to support large-scale, high-temperature polymer processing.
