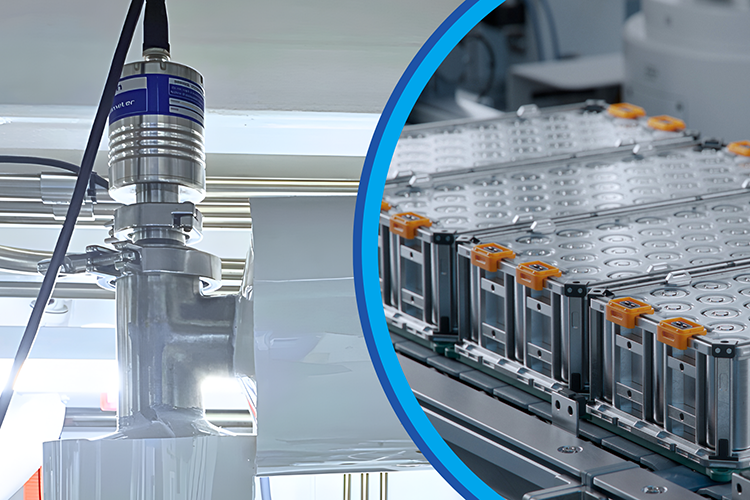

Inline viscosity monitoring enables real-time control of electrode slurry consistency in lithium-ion battery manufacturing. Hydramotion sensors can be integrated into automated control systems to enhance process reliability, support data-driven manufacturing, and maintain consistent electrode quality under continuous production conditions.

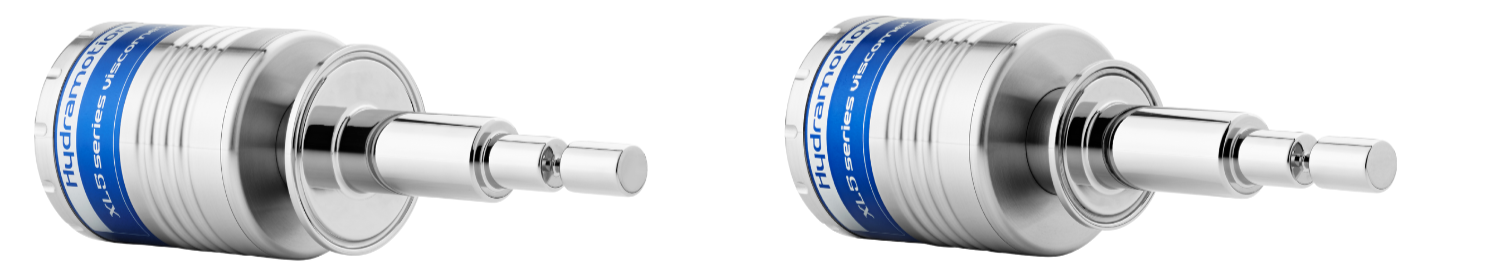

XL5 Sensor 2" Tri-clamp |
XL5 Sensor 1.5" Tri-clamp |

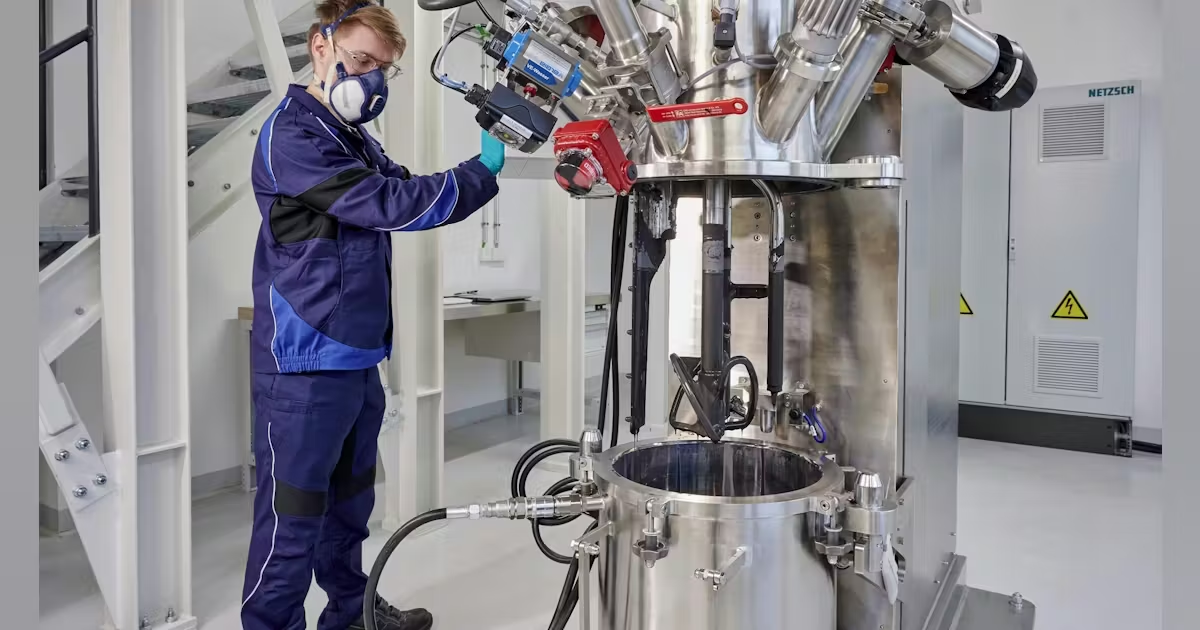

Lithium-ion Battery Manufacturing Process Overview
In lithium-ion battery production, electrode manufacturing is a critical and cost-sensitive process that covers everything from slurry preparation, mixing and coating, to drying, calendaring and slitting. Maintaining consistent slurry rheology throughout the process stages is essential to ensure uniform electrode structure and stable electrochemical performance in both anode and cathode materials.
Battery electrode slurries typically consist of active materials such as graphite or lithium metal oxides, conductive carbon additives, polymer binders (e.g. PVDF), and a solvent such as NMP or water.
These multi-phase systems exhibit highly non-Newtonian behaviour, where viscosity depends strongly on shear rate, temperature, and mixing energy. As a result, small variations in processing conditions can significantly alter slurry consistency and downstream coating quality.
Process Challenges
A key challenge in electrode manufacturing is the inability of conventional laboratory viscosity measurements to represent real process conditions. While lab testing remains an important quality reference, it does not capture slurry behaviour under dynamic conditions such as continuous mixing, pumping, and recirculation.
The delay between sampling, measurement, and reporting limits the ability to correct process deviations in real time. In high-throughput production environments, this can result in material waste, coating defects, and variability in electrode performance.
In practice, real-time insight into slurry behaviour is more valuable than static laboratory data. Inline measurements provide the opportunity to automate production and continuously track viscosity changes as the slurry moves through the process. These changes may be driven by incomplete dispersion, solvent loss, or binder degradation.
Inline viscosity measurements correlate strongly with key downstream quality indicators, including coating thickness uniformity and adhesion performance. This enables more immediate and effective process correction compared with offline methods.
Inline Viscosity Monitoring Solution
Inline viscosity monitoring provides direct, real-time visibility and control of slurry rheology within the battery electrode manufacturing process. Sensors are typically installed at critical points such as mixing, storage and recirculation loops, or immediately upstream of the coating head, enabling measurement under true process flow conditions rather than laboratory or sampled conditions.
Continuous measurement allows early detection of viscosity drift caused by changes to the slurry under processing conditions. As a result, operators can make timely process adjustments to maintain slurry consistency before deviations impact downstream electrode quality.
Improved viscosity control supports more uniform electrode film formation, reducing variability in coating thickness and improving consistency across long production runs. This contributes directly to improved cell performance stability and reduced risk of defects associated with non-uniform electrodes.
By maintaining tighter slurry control throughout the process, manufacturers can operate within narrower viscosity tolerances and achieve more consistent electrode quality.
Integration and Automation

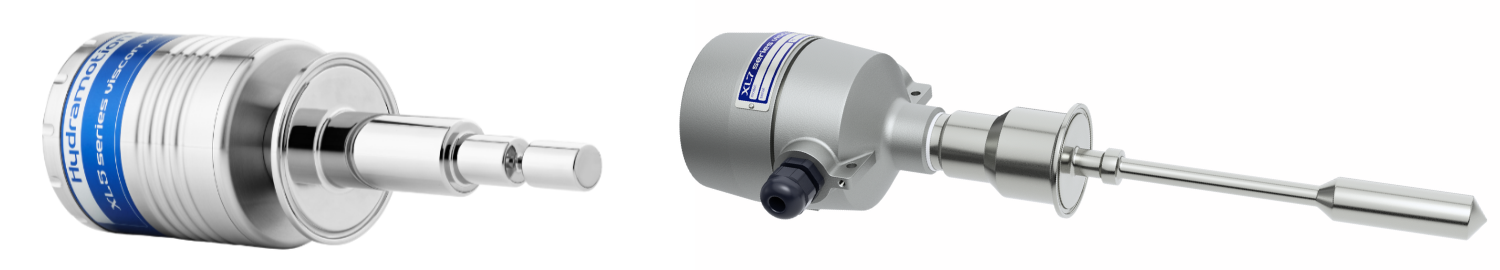

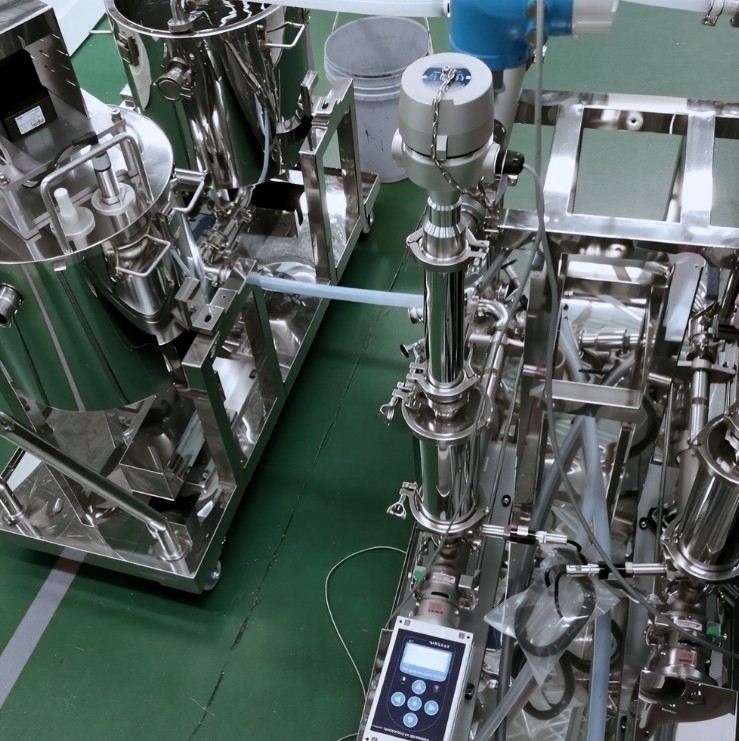

Hydramotion viscosity sensors can be easily integrated into battery electrode manufacturing lines with no on-site modification required. Installed directly in slurry transfer lines, mixing tanks or recirculation loops, they operate continuously without interrupting production flow. A range of sensors are available including the XL7 and XL5 series dependant on desired installation location and configuration.
Both options are all-welded solid state sensors designed to operate at the slurry temperature, and can be configured to display viscosity corrected to a standard reference temperature if required. Welds are smooth and crevice-free with open construction for easy cleaning and to eliminate contaminant traps. The XL5 sensor surface finishes to Ra < 0.4 µm as standard.

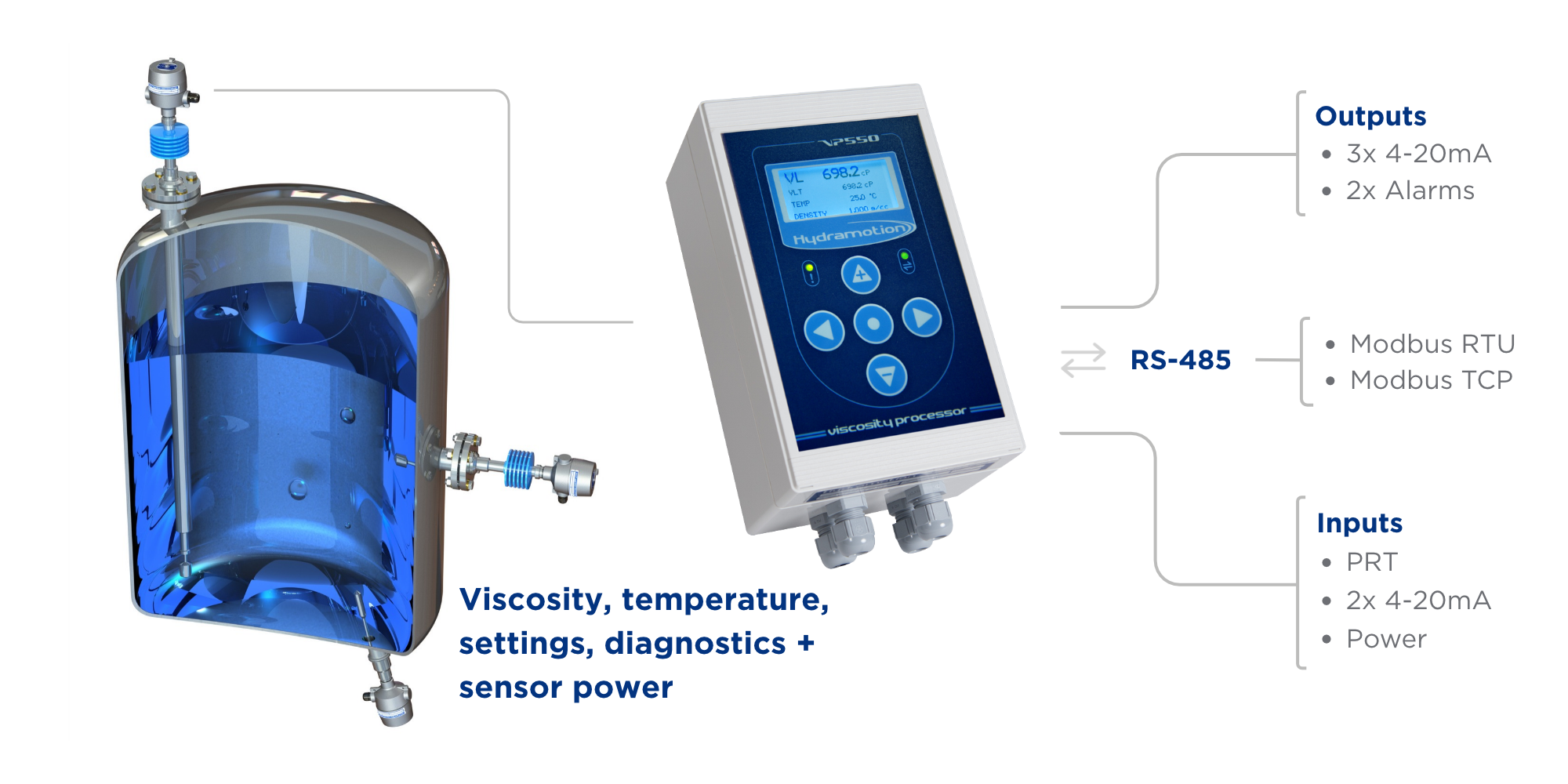

The data can feed into predictive or closed-loop control systems, allowing automated adjustment of mixing speed, solvent dosing, or temperature based on live viscosity feedback.
All viscometers are supplied with process fittings to match the connections that already exist on your equipment. This includes any size or type of sanitary fitting, including quick-release tri-clamp mountings, RJT, IDF, DIN, SMS, Varivent® and others.
Typical dimensions can be seen below for an indicative XL5 sensor. Hydramotion also offers a bespoke design service - Special Ops - where a sensor of virtually any size or geometry can be designed to fulfil the requirements of the application.
Download indicative XL5 GA drawing file >
Ready to learn more?
Contact Hydramotion to discuss your battery application requirements. Or visit the following links to learn more about Hydramotion viscosity sensors.
