Black liquor viscosity is one of the most operationally critical and difficult-to-manage variables in the kraft pulping and recovery cycle. As solids concentration rises through the evaporation stages, viscosity can increase significantly, to levels at which pumpability and atomisation are both seriously compromised.
Inline viscosity measurement converts viscosity from an inferred variable into a controlled parameter, giving mills the real-time feedback needed to maintain stability across the recovery process.

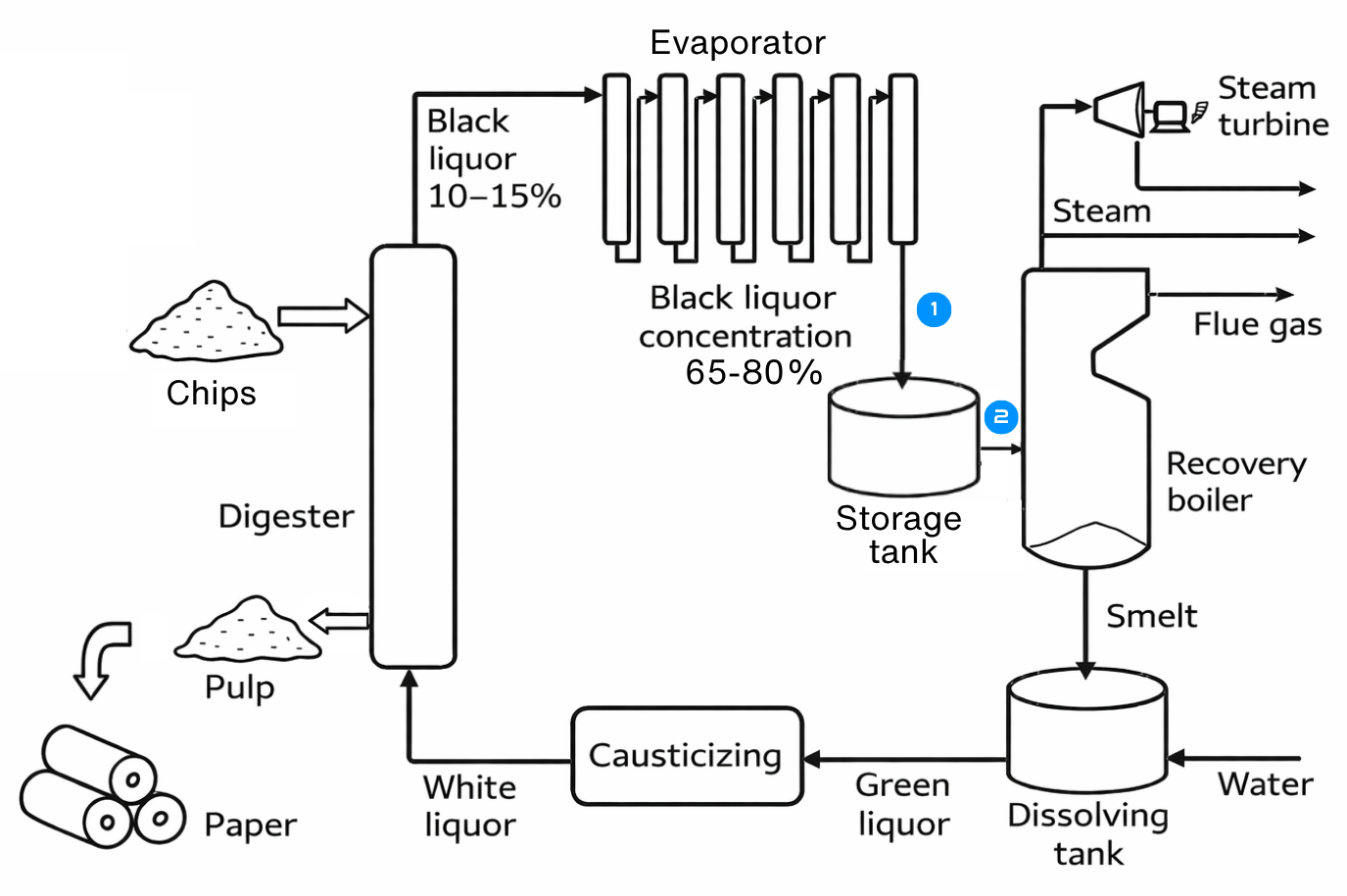

Black liquor process overview
In the kraft pulping and recovery process, wood chips are cooked in a digester with sodium hydroxide and sodium sulfide, known as white liquor, to dissolve lignin and separate cellulose fibers. The pulp is then washed and bleached to produce the finished product.
The remaining spent pulping liquor, known as black liquor, contains the dissolved lignin and pulping chemicals that are later recovered in the recovery boiler to regenerate chemicals and produce energy.
The black liquor is concentrated through an evaporation process from around 15% solids at 'weak' liquor stage, to 65–80% dry solids content before firing in the recovery boiler. The organic content is then combusted to generate steam and energy.
The inorganic chemicals survive combustion as molten smelt, which is dissolved in water to form green liquor, and then causticised to regenerate white liquor. This final step completes the chemical recovery cycle that begins again with the next cook.
Viscometer installation locations
XL7 + VP550 |
||
XL7 + VP550 |
Process challenges
Black liquor rheology changes significantly with solids concentration and temperature. Below 50% solids, black liquor generally behaves as a Newtonian fluid. Above this threshold it becomes increasingly non-Newtonian and shear-thinning, with viscosity rising sharply as solids approach firing concentration.
Poor control leads to unstable evaporation performance, pumpability issues in transfer lines and poor atomisation at the recovery boiler burners.
Many plants historically infer viscosity from density or solids measurements, but these correlations are inherently unreliable and can drift with composition changes driven by wood species variation, pulping conditions, and liquor ageing. These same variables influence liquor chemistry, which often determines the mill's appropriate cleaning and maintenance protocols.
Monitoring viscosity directly inline eliminates this uncertainty, converting black liquor rheology from an inferred variable to a directly measured and controlled parameter.
Inline viscometer integration

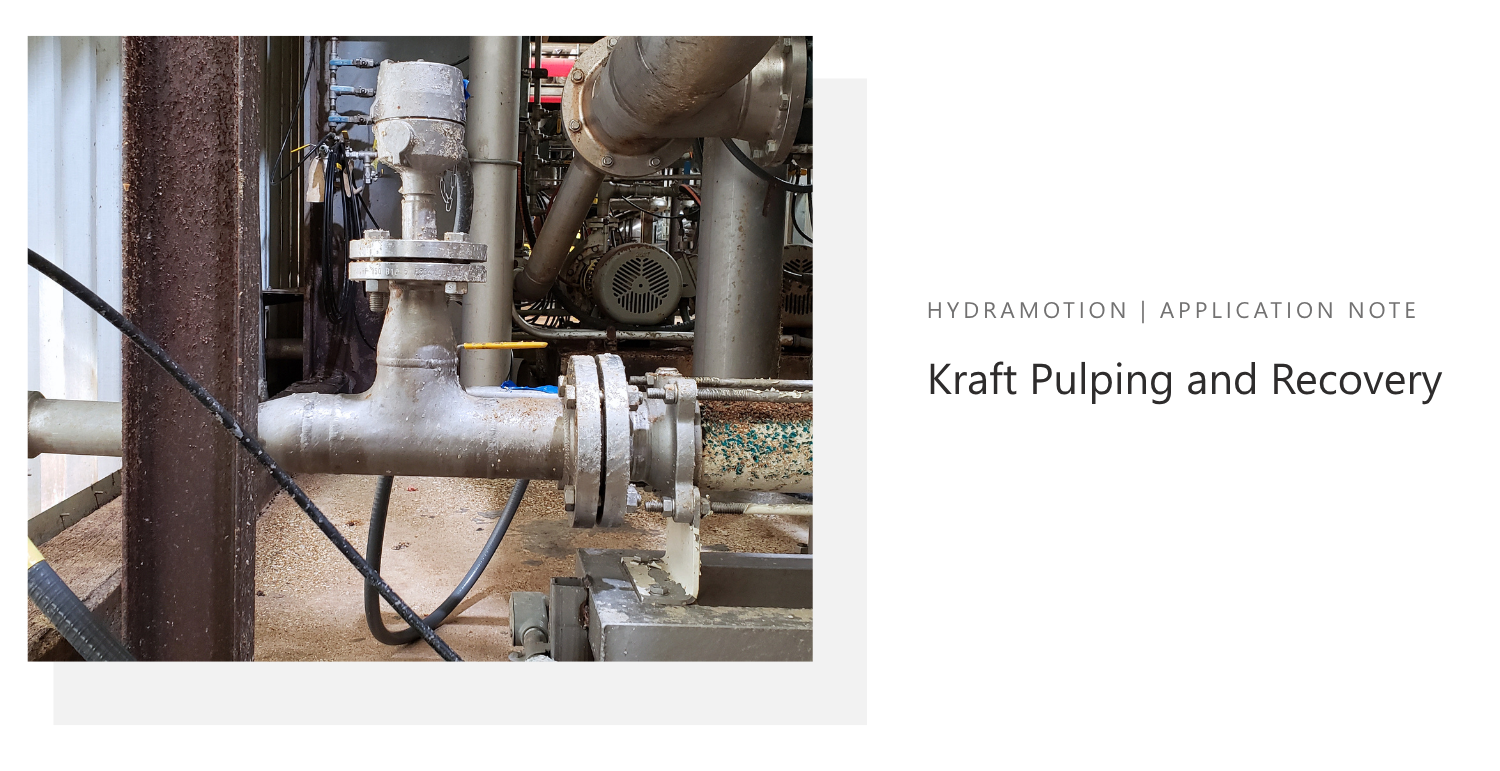

A Hydramotion inline viscometer would typically be installed directly in the concentrated black liquor transfer line, downstream of the final evaporator stage and upstream of the storage tanks, or in the recovery boiler feed line.
These are often the most optimised measurement locations as it captures the fluid where high solids, process temperature and active pumping are all present, and therefore provides the most operationally relevant viscosity reading.
Hydramotion sensors measure viscosity continuously under true process temperature and shear conditions, with a 4–20 mA or digital output providing real-time feedback to the distributed control system (DCS). The closed-loop system monitors concentration continuously and can return liquor to the evaporation column if the viscosity falls outside the target setpoint, or flag high-viscosity conditions at the boiler feed line.

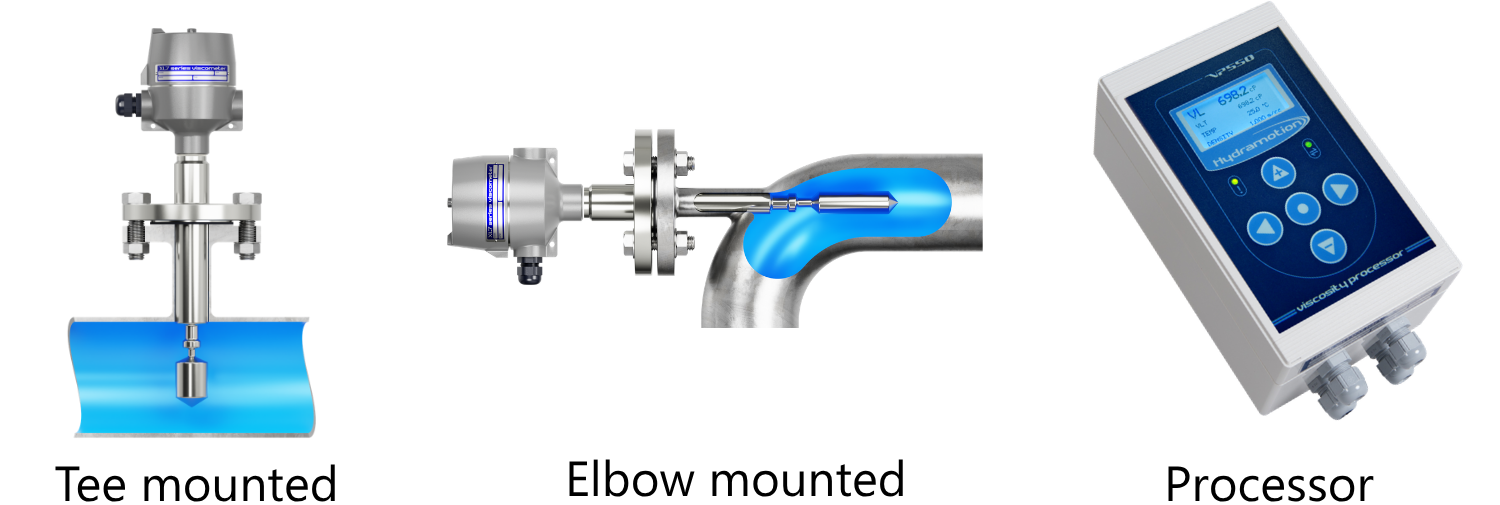

Installation is via standard process connections compatible with existing pipework flanges and all instruments are compatible with in-situ cleaning. Cleaning protocols and intervals should be maintained in accordance with the mill's existing liquor chemistry management practices.
The Hydramotion advantage
Black liquor at firing concentration is a chemically aggressive, high-temperature, high-solids fluid with non-Newtonian behaviour. Direct sampling for laboratory analysis is impractical at this stage of the process, which is why mills have typically relied on inferred measurements such as density via Coriolis meter or dissolved solids via refractometer, as a proxy for viscosity. However, these correlations can drift with composition changes, and neither directly measures the rheological property that governs pumpability and atomisation.

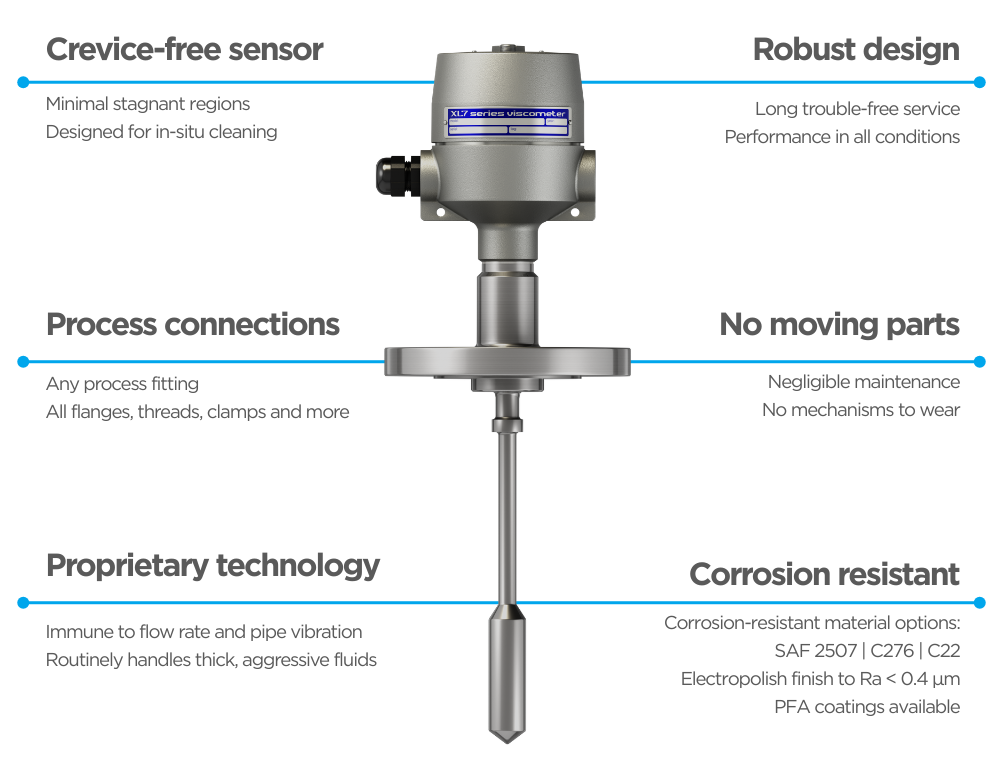

Hydramotion viscometers provide the direct measurement required whilst also being well suited to this challenging environment, routinely handling thick, aggressive fluids. The measurement principle is insensitive to flow rate and pipeline vibration, which is significant in a transfer line subject to pump-induced pulsation.
No moving parts means maintenance is minimal, and there are no mechanisms to wear against abrasive solids. The wetted materials can be specified in corrosion-resistant alloys appropriate for the alkaline, high-temperature chemistry. High polish finishes or additional sensor coatings can also be configured if required.

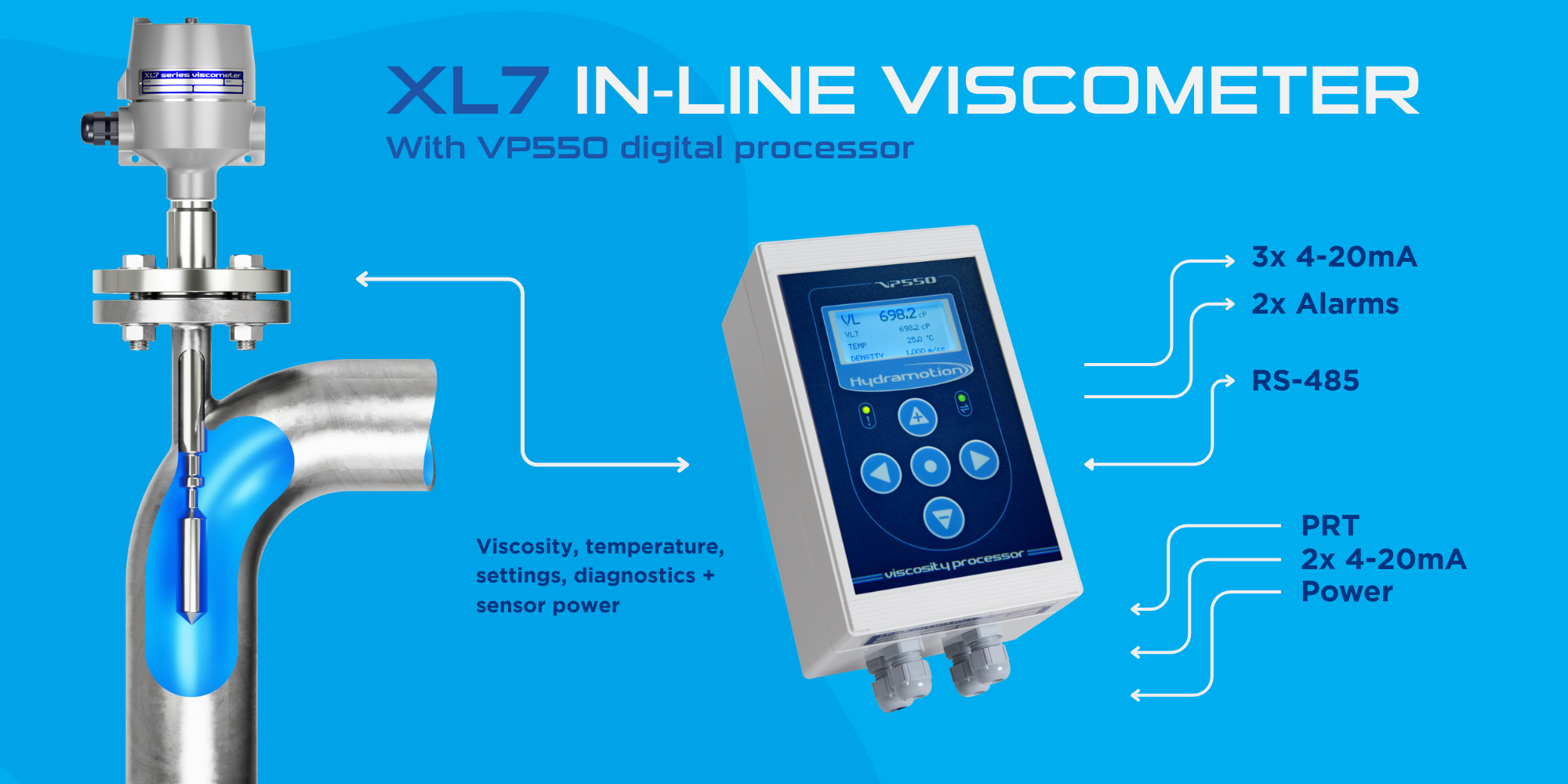

Hydramotion viscometers can be supplied with a built-in temperature PRT, or can accept an input from an existing temperature probe. The VP550 digital processor provides temperature-corrected viscosity as an output if required, ensuring the measurement reflects true fluid properties regardless of process temperature variation.
Inline viscosity benefits
The benefits realised depend on the measurement location relative to the recovery boiler feed. A sensor installed downstream of the final evaporator delivers the evaporator stability and transfer line benefits, whilst a sensor installed in the boiler feed line realise the combustion and chemical recovery benefits.
Evaporator stability: Real-time viscosity feedback allows operators to maintain optimal solids concentration without allowing excessive viscosity buildup. Tighter control of the evaporation endpoint reduces energy consumption per tonne of solids processed and extends the intervals between evaporator cleaning cycles.
Transfer line reliability: Early detection of viscosity increases prevents conditions that lead to line fouling or plugging. In black liquor service, an unplanned transfer line blockage can force a shutdown of the recovery cycle - a costly disruption that inline monitoring helps avoid.
Recovery boiler performance: Controlling viscosity at the burner feed ensures consistent spray atomisation. Poor atomisation produces larger droplet sizes, incomplete combustion, and reduced steam generation efficiency. Maintaining viscosity within the optimal range for the burner design directly supports stable combustion and maximum energy recovery from the liquor solids.
Chemical recovery: Stable combustion conditions improve the consistency of smelt composition leaving the recovery boiler, which in turn supports more predictable causticising performance and lime kiln load. The downstream chemical recovery loop benefits from the stability introduced at the viscosity control point.
Together, these improvements enable tighter process control across the recovery process, helping mills optimise energy generation and chemical recovery yield while reducing unplanned operational disruptions.
