A Safe Area transducer can be connected directly to a VP550 signal processor.
If your XL7 transducer is intrinsically safe, please refer to Intrinsically Safe installation.
- Mount the transducer in the desired location.

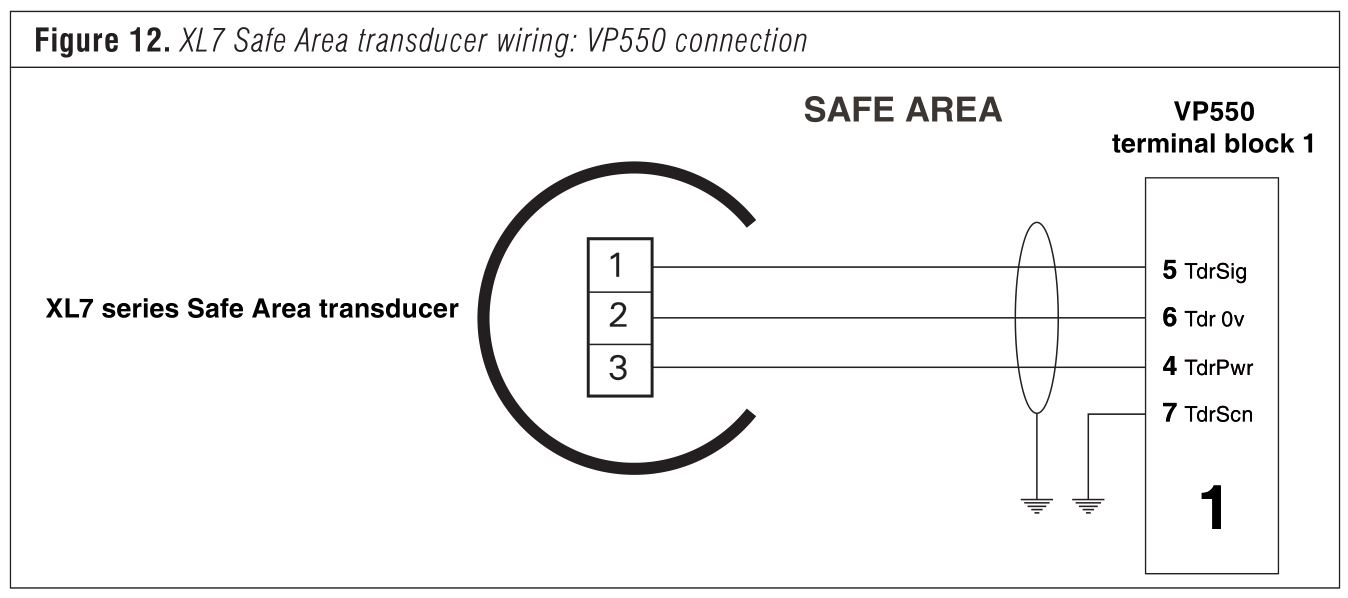

- Connect a safe-area XL7 transducer to the VP550 as shown in Figure 11 and Figure 12. Recommended cable type: 3-core (each core 0.5 mm² or stranded 16/0.2) with overall screen.
